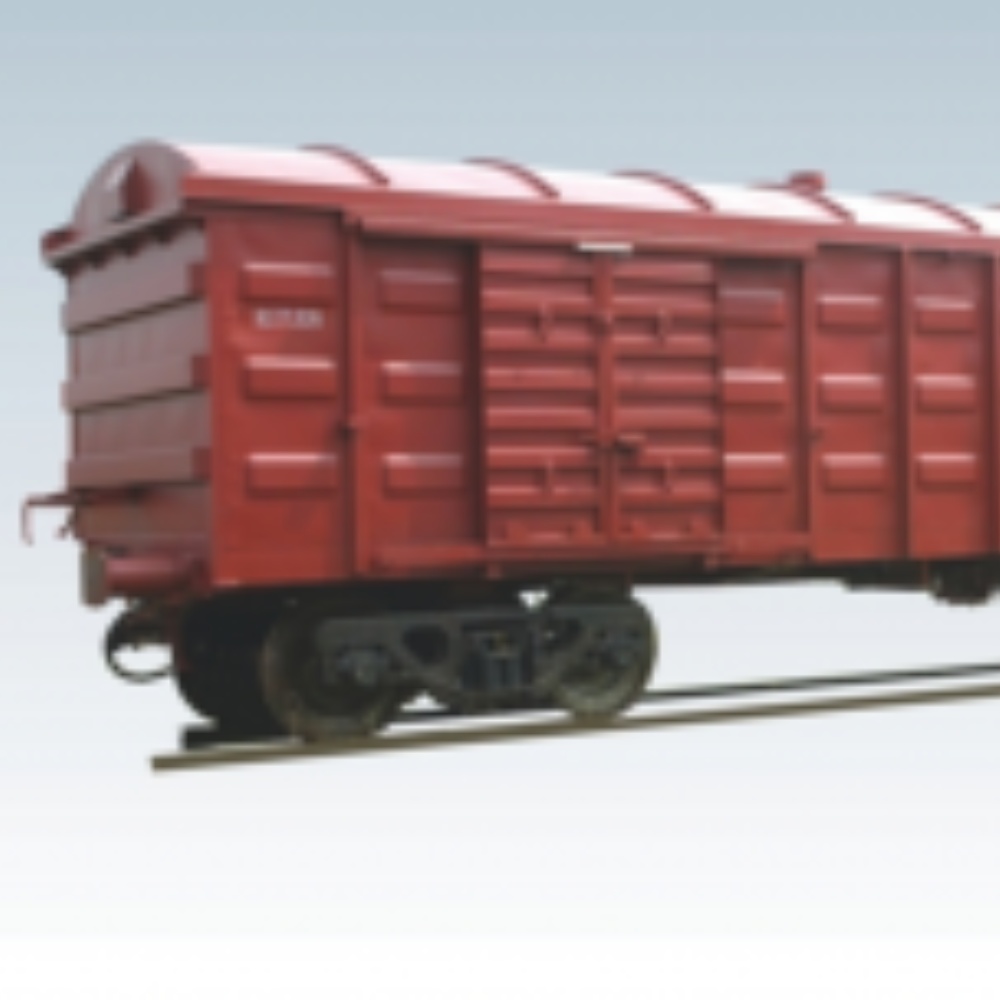

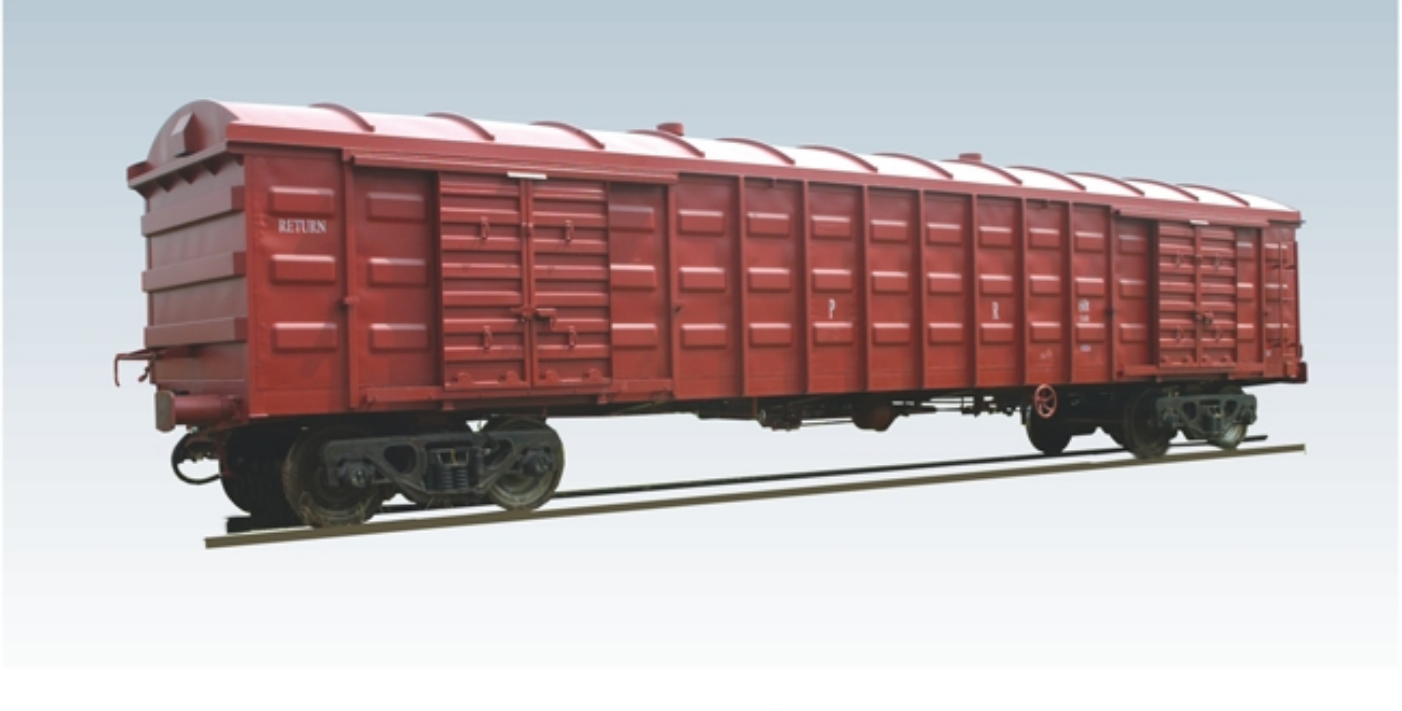

Type P60-PAK box wagon for PAKISTAN

Short Description:

t is used for transporting the wheat, sugar, fertilizer, packed cement, etc. The operation temperature is +53℃~-18℃。The box wagon are equipped with ISO standard air brake system and the cast steel bogie. Its coupler could be the No. 13 coupler or the dual performance coupler. It is adopted with the ST draft gear and side buffer.

Main technical parameters
loading capacity:60t
Tare weight:23.6t
Axle load2:1t
Cubic capacity:103m’
Commercial operation speed
            Empty condition 100km/h
            Loaded condition 80km/h
Track gauge:1676mm
