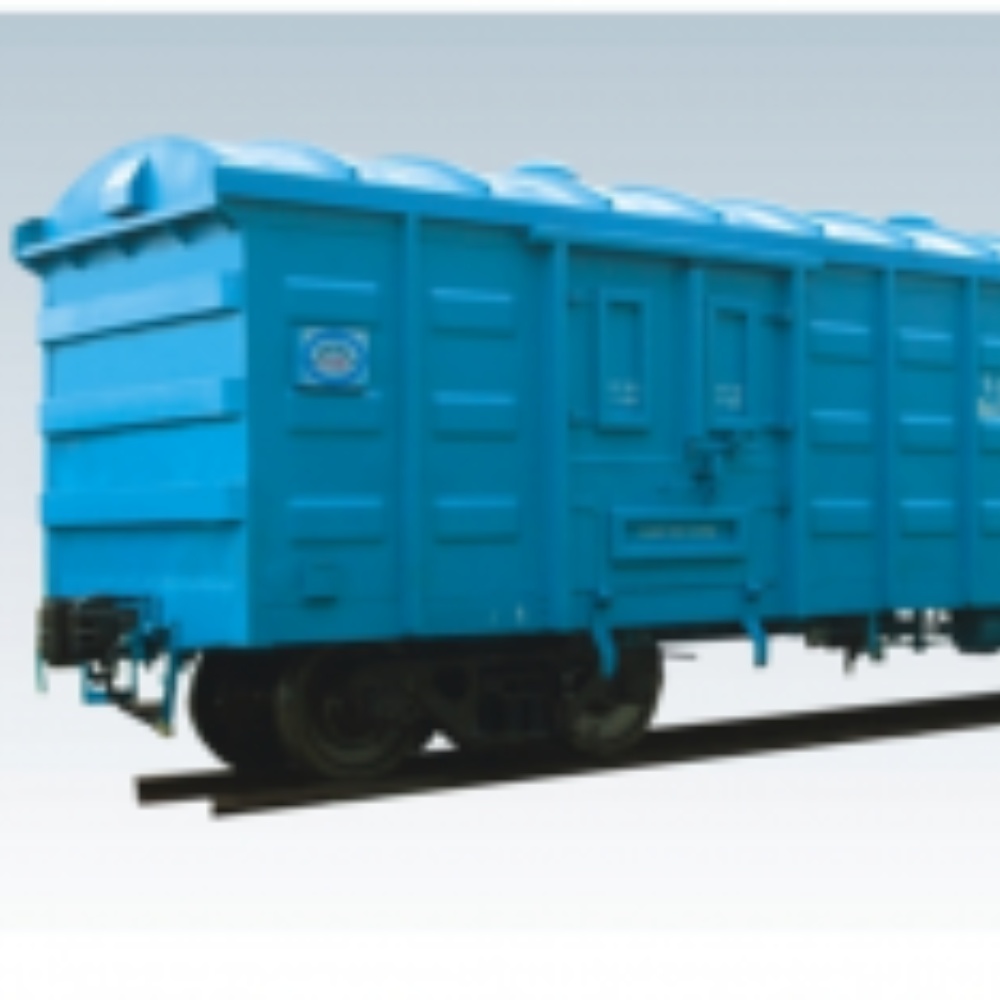

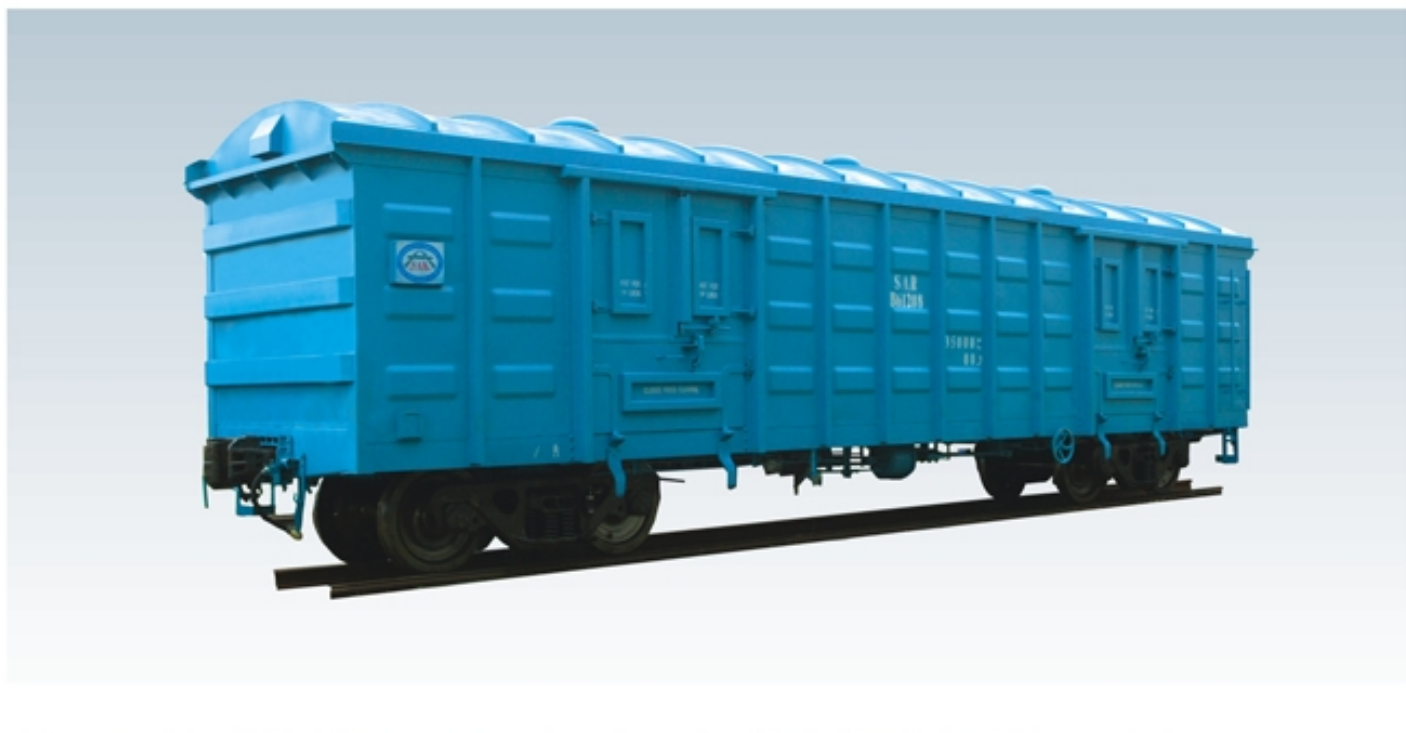

Type P35-SDN box wagon for SUDAN

Short Description:

It is used for transporting the valuable goods or the goods that shall not be exposed to the rain or sunshine. The box wagon are equipped with ISO standard C3W air brake system and the cast steel bogie.

Main technical parameters

Loading capacity:35t

Tare weight:≤19t

Axle load:13.5t

Cubic capacity:64.7m’

Minimum radius of curvature:137m

Commercial operation speed:80km/h

Track gauge:1067mm
