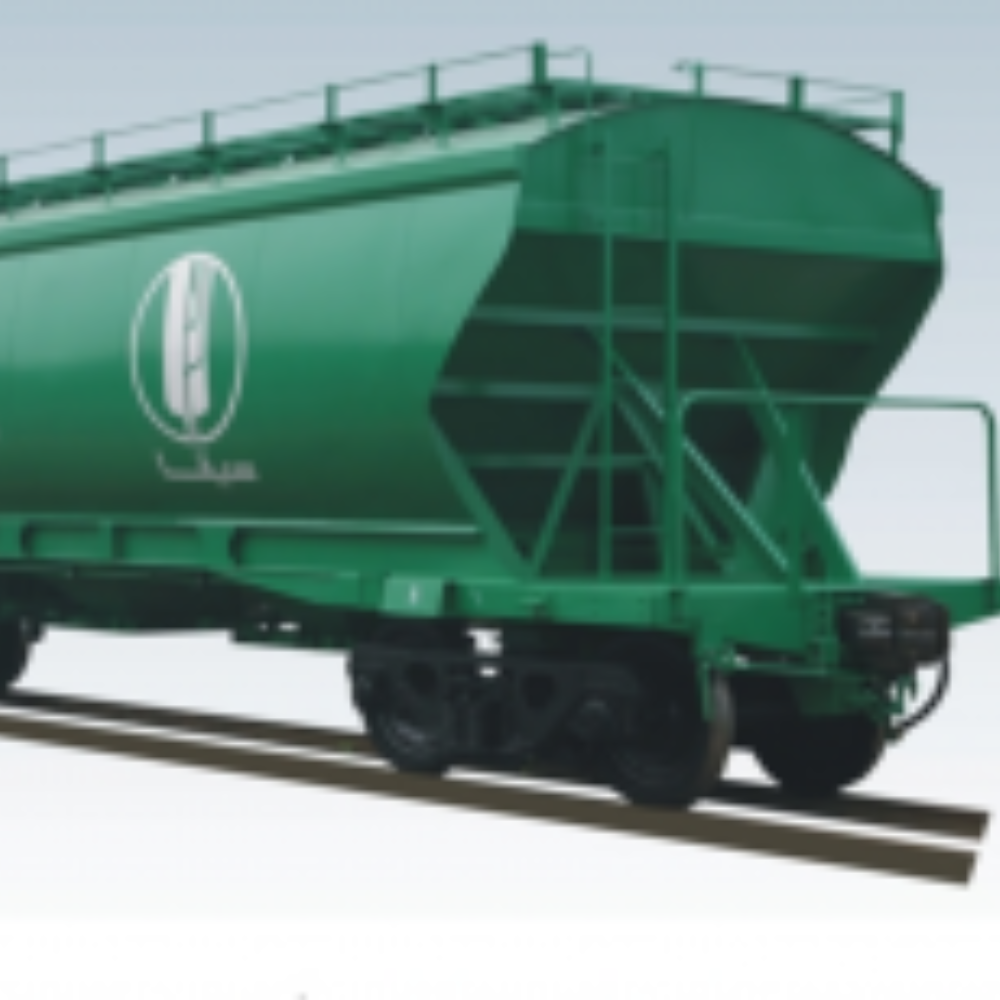

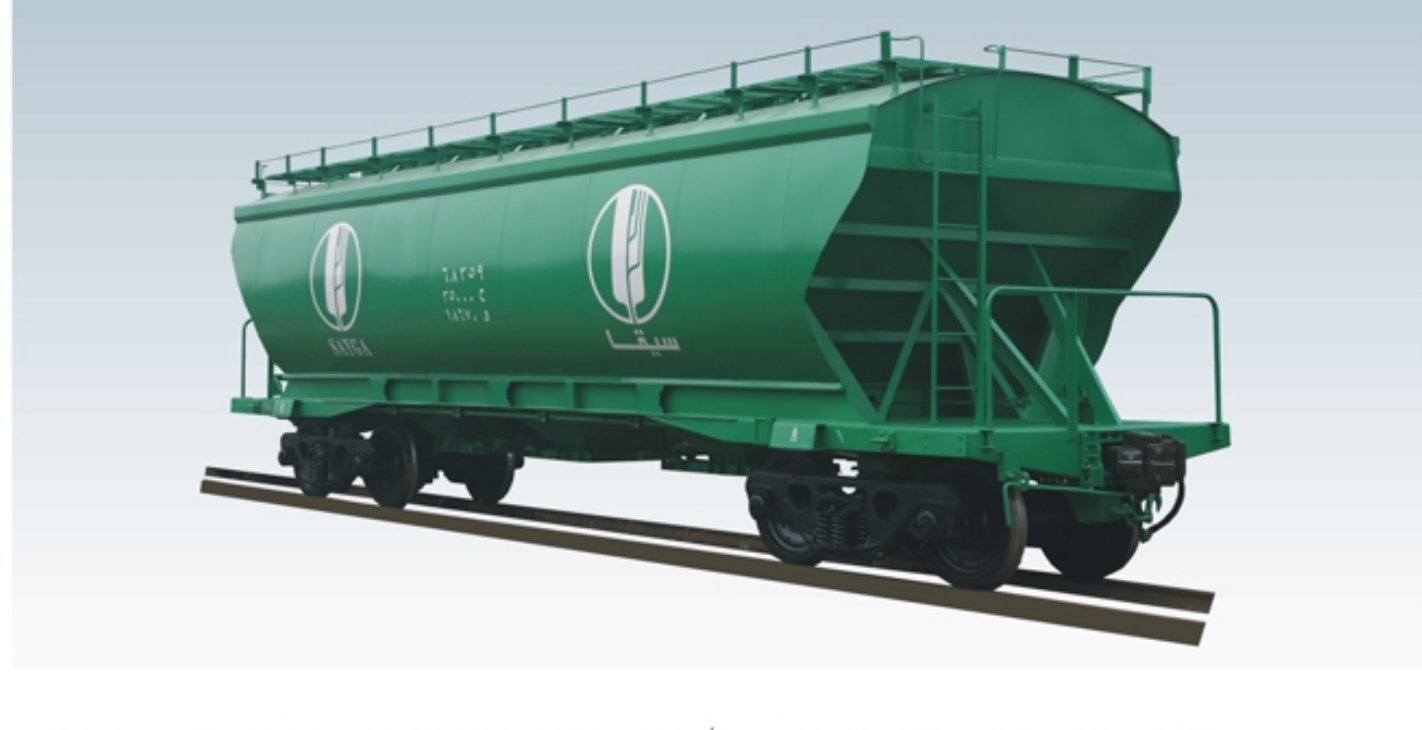

Type L35-SDN Cereal hopper wagon for Sudan

Short Description:

Source: DateTime:2013-12-04

It is mainly used for transporting the cereals as the wheat, corn, bean, ect. on the Sudan railway line of 1067mm track gauge. It is loaded from the top and unloaded from the bottom.It is equipped with the three piece cast steel bogie.

Main technical parameters
Loading capacity 35t
Tare weight ≤19t
Axle load 13.5t
Cubic capacity 49m³
Minimum radius of curvature 137m
Commercial operation speed 80km/h
Track gauge 1067mm
