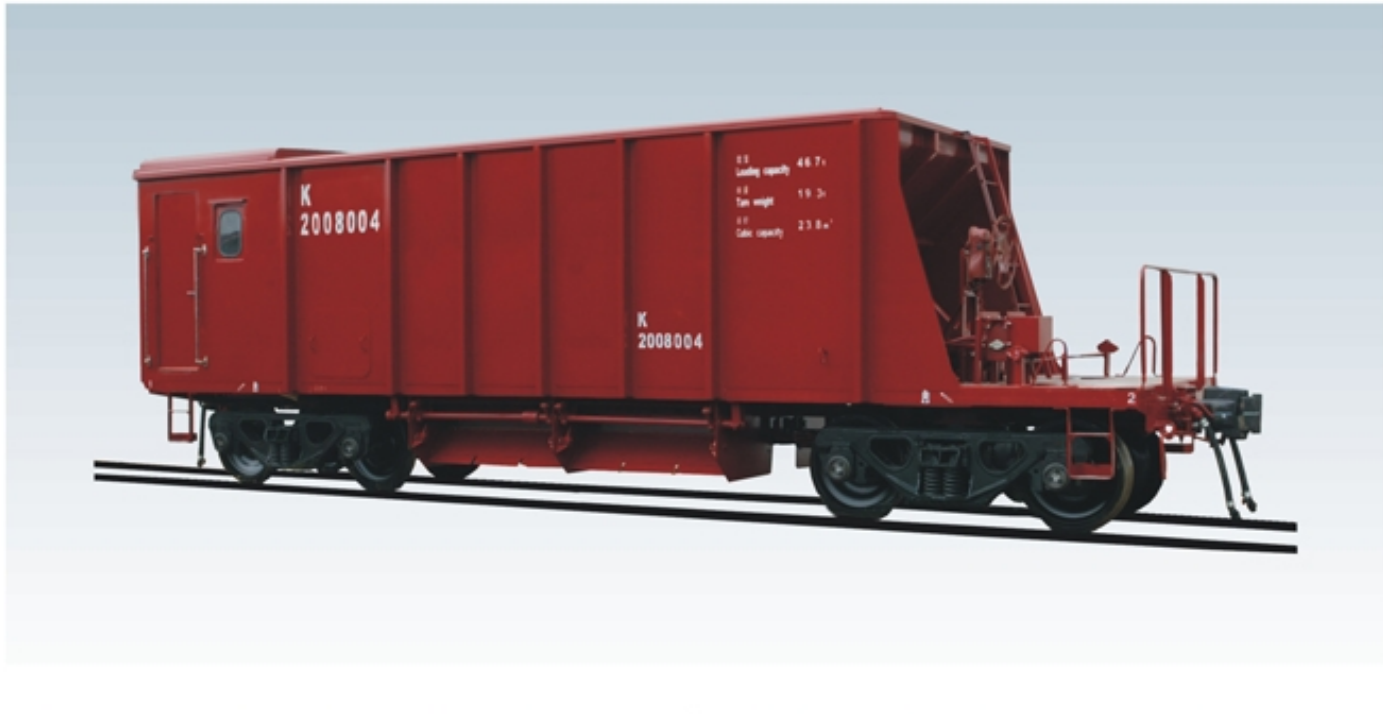

Type KZ51-AGO ballast hopper wagon for Angola

Short Description:

Source: DateTime:2013-12-04

It is mainly used for transporting the ballast on the Angola railway line. It is equipped with the104KG brake equipment, FSW hand brake, No.13 bottom operated coupler and ST draft gear. It is equipped with the three piece cast steel bogie.

Main technical parameters
Loading capacity 47t
Tare weight ≤19.3t
Axle load 16.5t
Cubic capacity 23.5m³
Minimum radius of curvature 114m
Commercial operation speed 100km/h
Track gauge 1067mm
