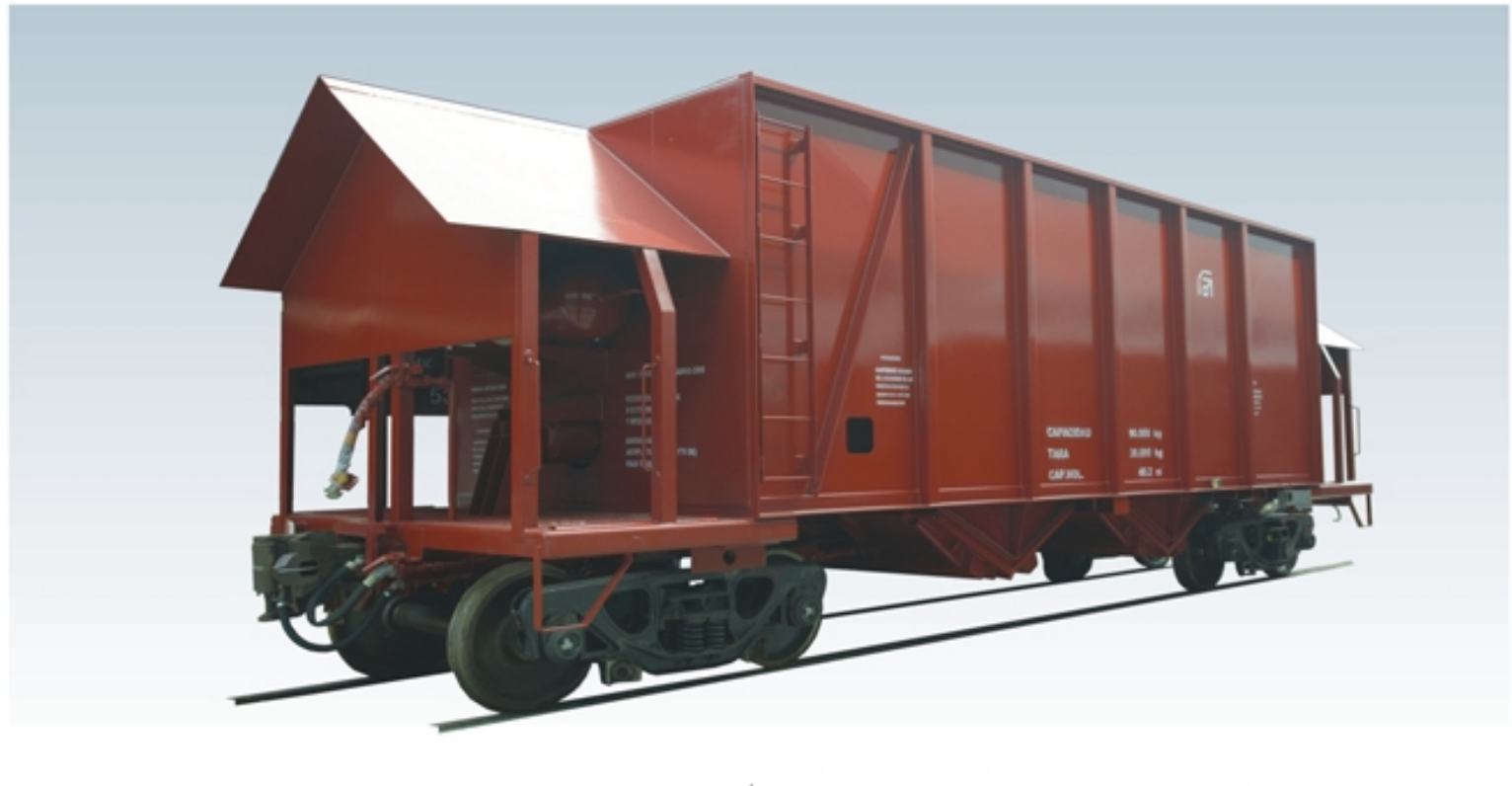

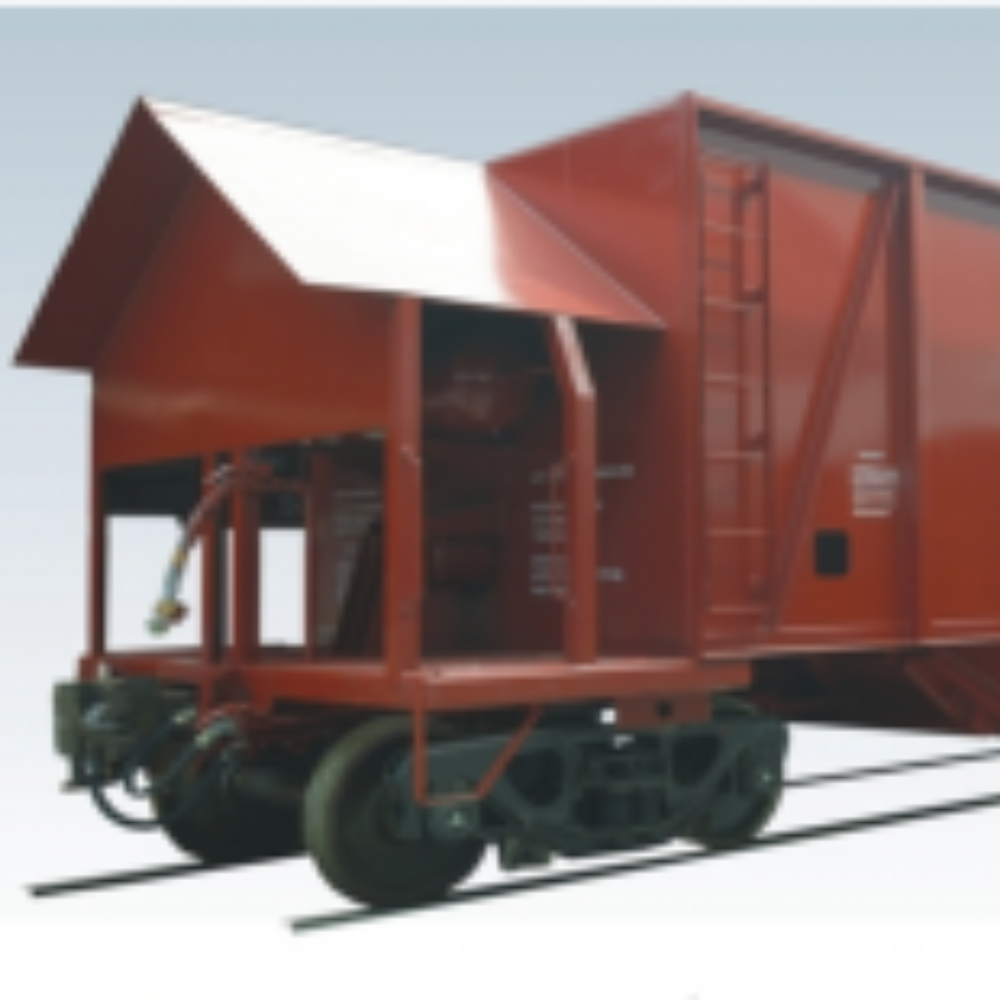

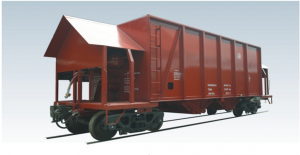

Type K90-VEN hopper wagon for Venezuela

It is mainly used for transporting the iron ore on FMO railway line of 1435mm track gauge. It is equipped with the No. 17 automatic coupler and MT-2 draft gear, AAR standard brake equipment and FSW hand brake. It is equipped with the three piece cast steel bogie.

Main technical parameters
Loading capacity 90t
Tare weight 29.8t
Axle load 30t
Cubic capacity 40.2m³
Minimum radius of curvature 200m
Commercial operation speed 80km/h
Track gauge 1435mm
