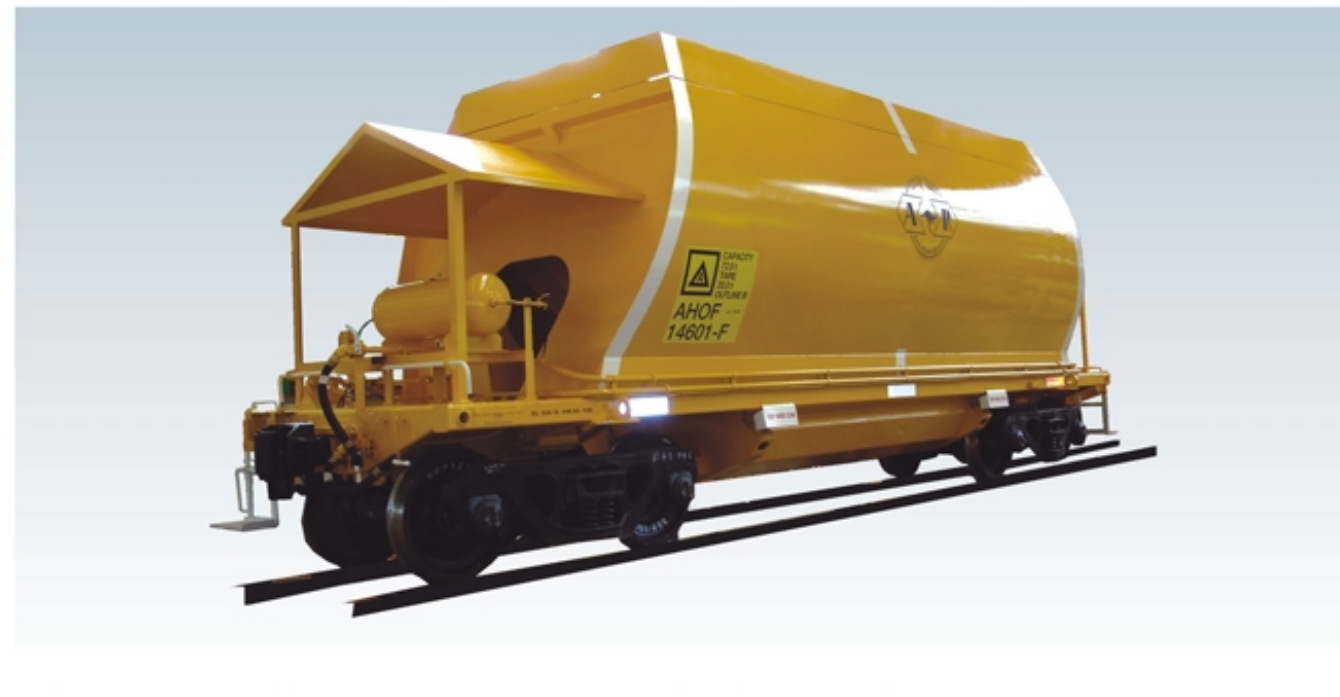

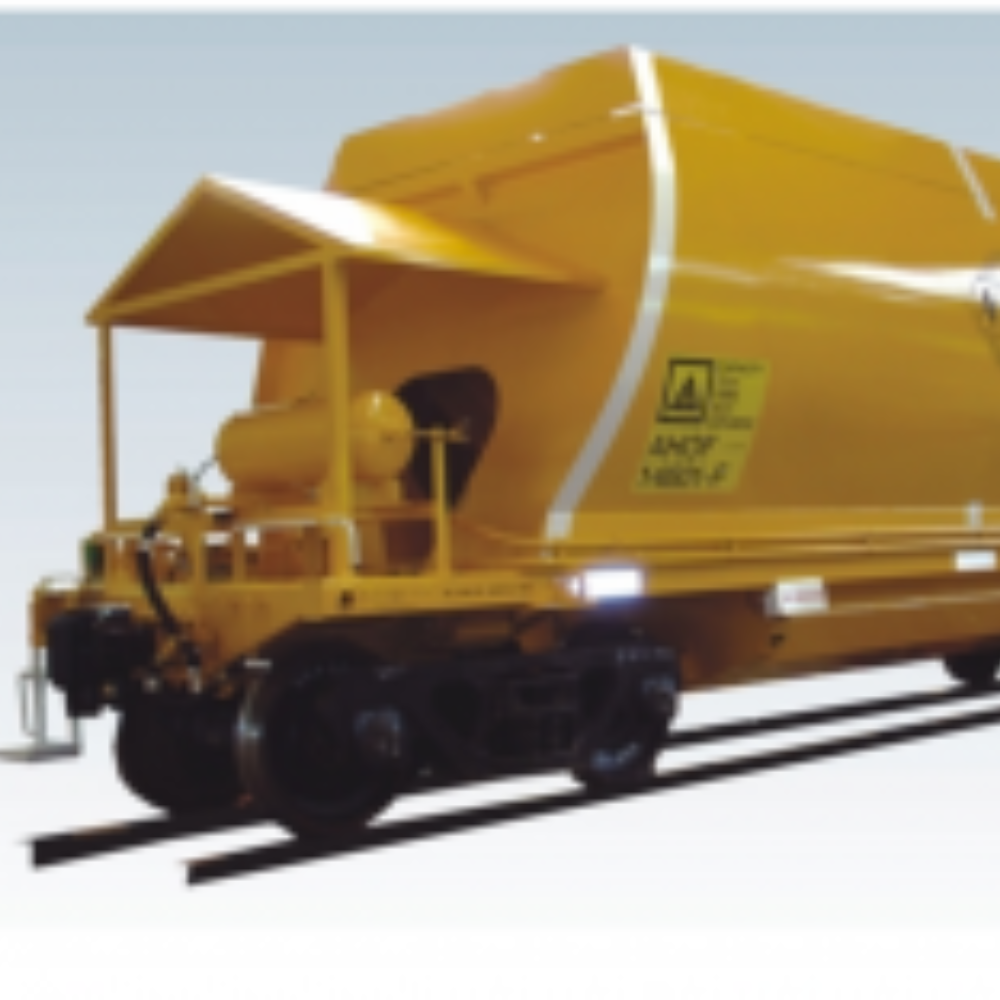

Type K72-AUS hopper wagon for Austrilia

Short Description:

Source: DateTime:2013-12-04

It is mainly used for transporting the iron ore on Austrilian railway line of 1067mm track gauge. It is equipped with the E/F coupler and MT-2 draft gear. WF5 brake equipment and FSW hand brake. It is equipped with the three piece cast steel bogie.

Main technical parameters
Loading capacity 72t
Tare weight 20t
Axle load 23t
Cubic capacity 30m³
Commercial operation speed 80km/h
Track gauge 1067mm
