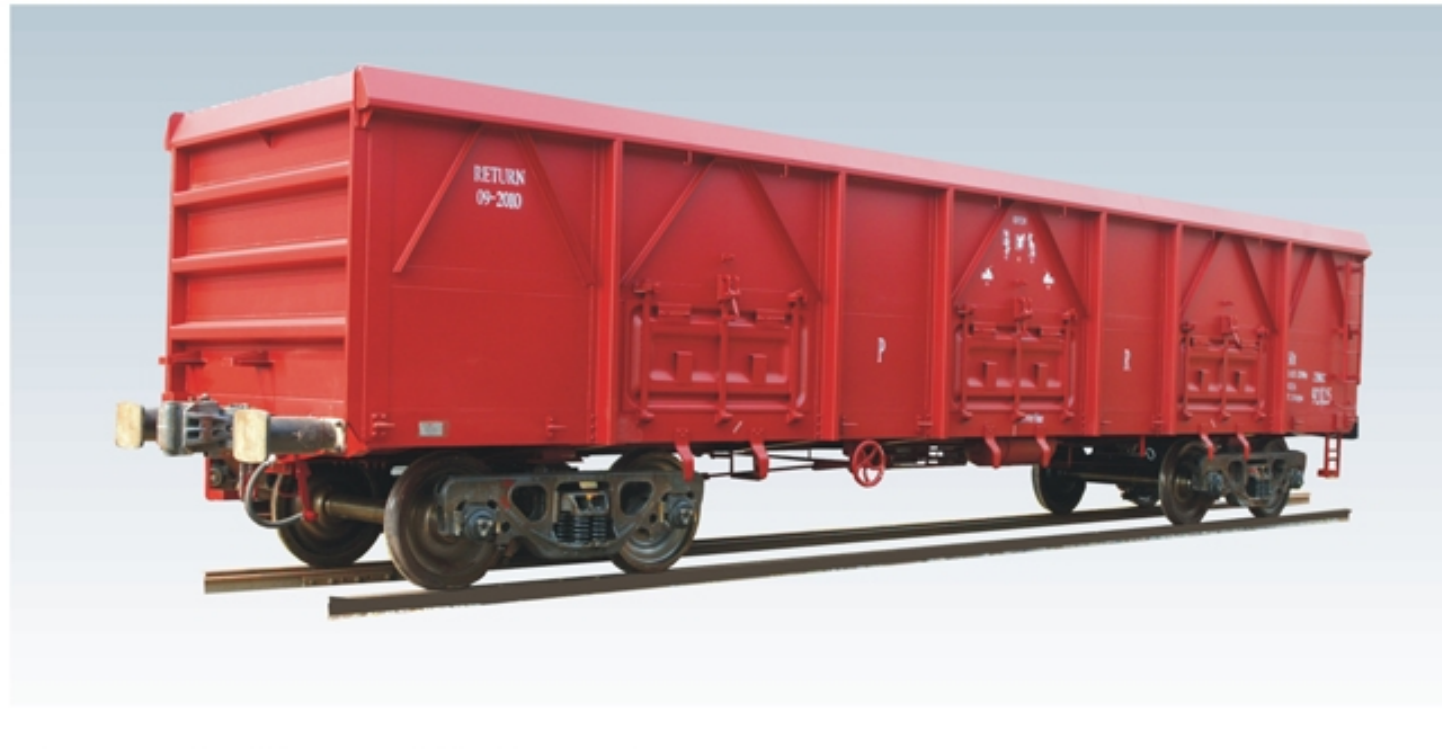

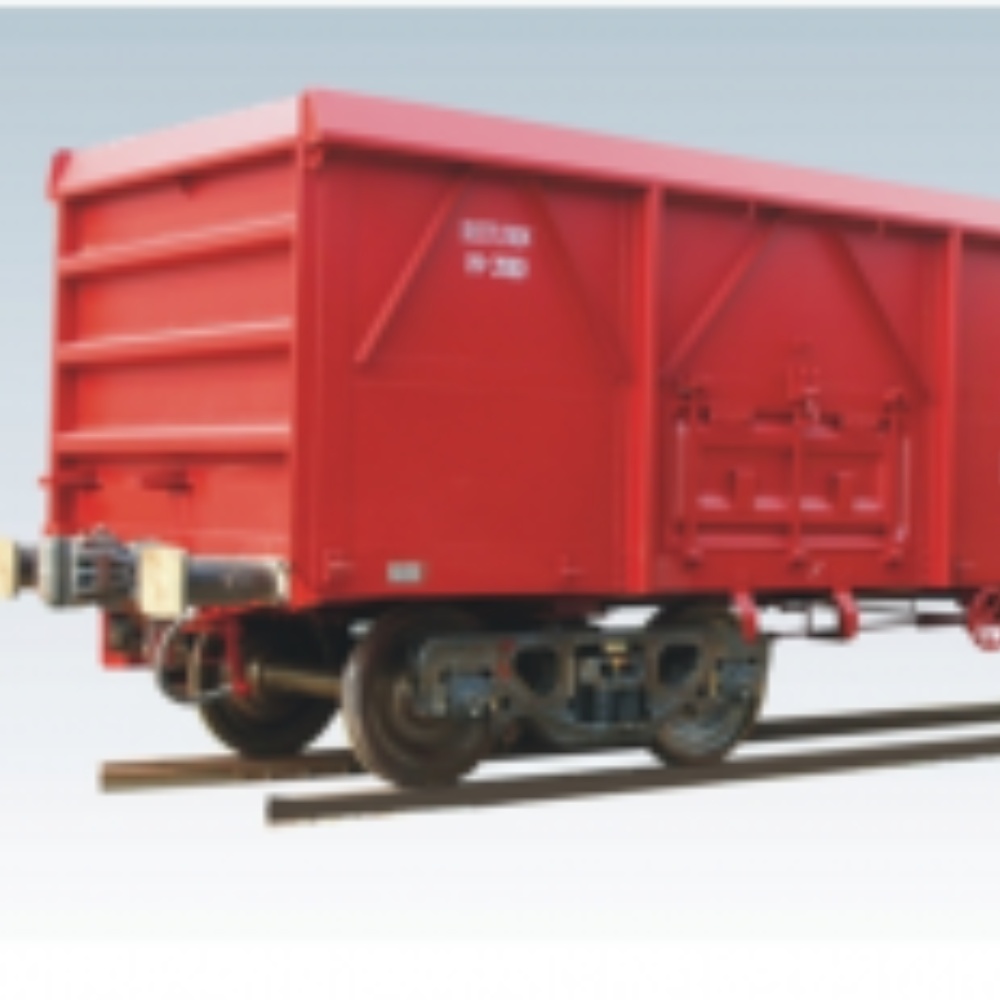

Type C60/C60A-PAK Open-top wagon for Pakistan

Short Description:

Type C60/C60A-PAK Open-top wagon for Pakistan

This type of wagon is used for transporting the coal, minerals, construction materials, steel, timber and machinery equipment,etc. It is equipped with the three piece casting steel bogie and Mh3f

HBG310/200 air brake of ISO standard.The C60-PAK installs with the No.13B top operation coupler, No. 13 coupler yoke and ST draft gear. The C60A- PAK installs with the central rotated coupler, side buffer, No.13 coupler yoke, ST draft gear and chain coupler.

 Main technical parameters

loading capacity :60t

Tare weight C60-PAK : 22.7t

C60A-PAK : 23.5t

Axle load :  21f

Cubic capacity : 82.8m

Commercial operation speed :100km/h

Track gauge :1676mm
