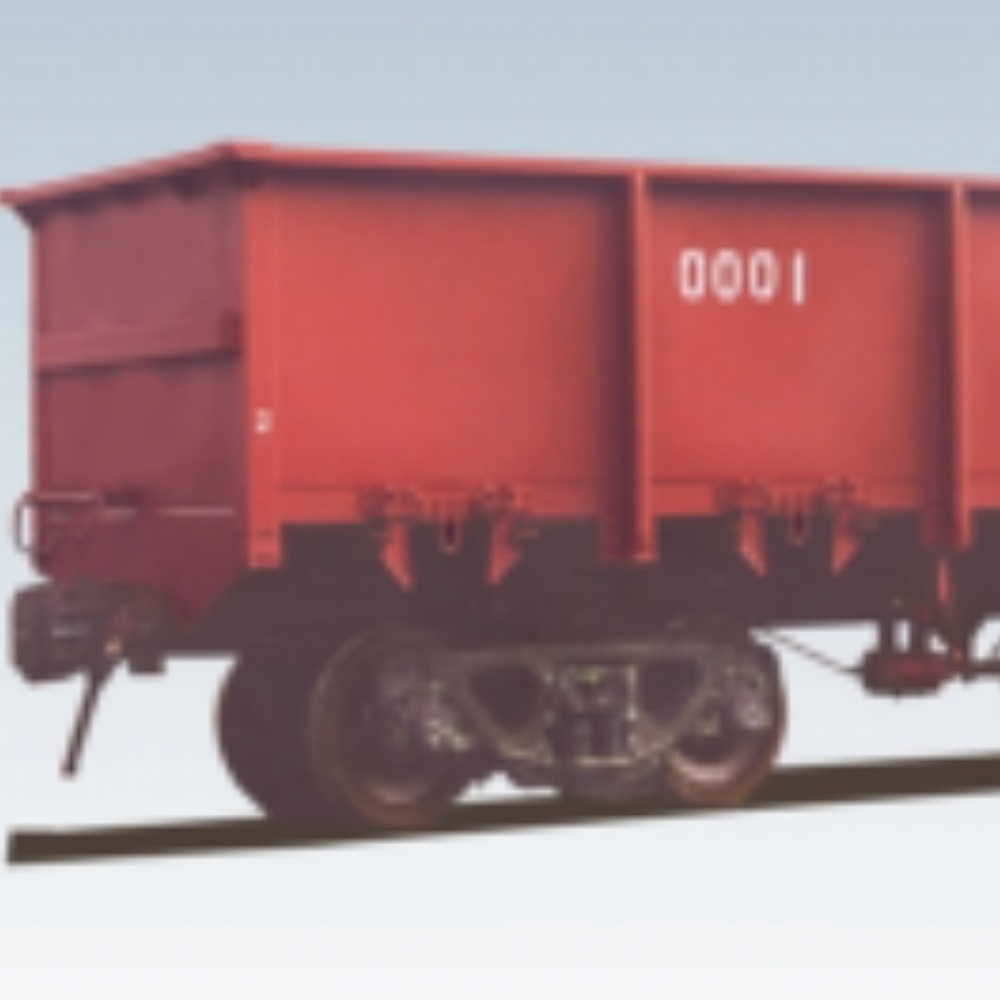

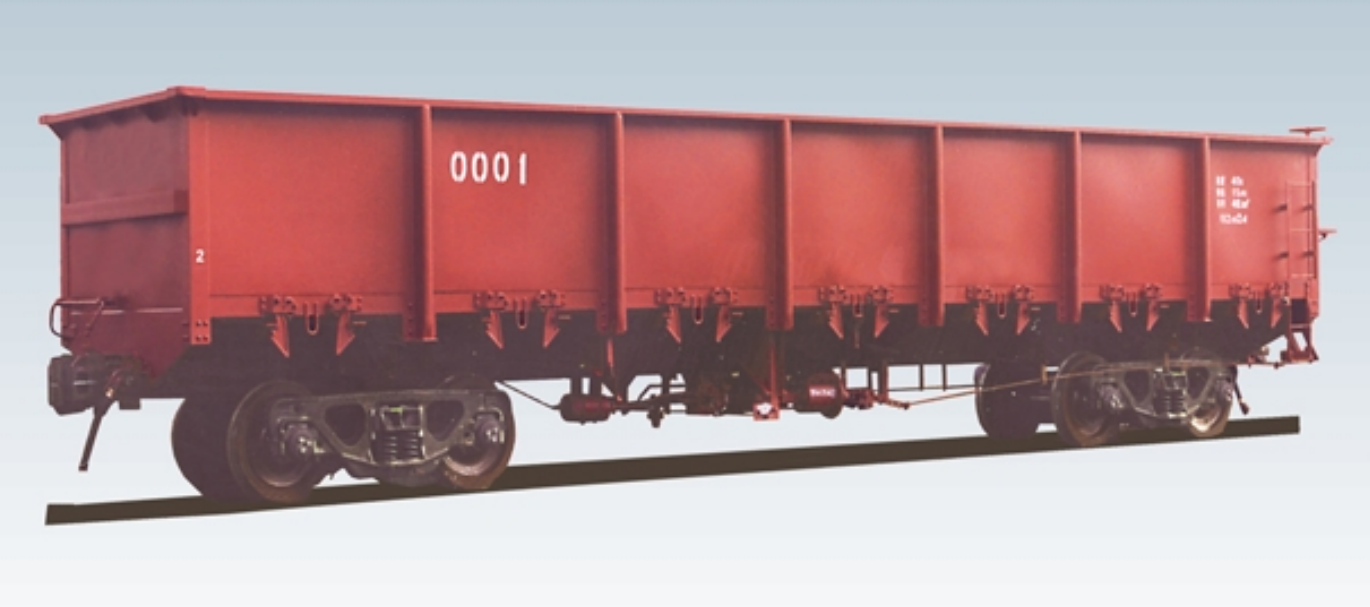

Type C40-VIE Open-top wagon for Vietnam

Short Description:

This type of wagon is used for transporting the iron ore fines. It is an all steel welded construction. There are movable bottom doors locating in the underframe and the goods are unloaded by gravity. It is equipped with the three piece cast steel bogie, 104KG distributor valve, manual load/empty changeover device, chain hand brake, No.13 top operation coupler and rubber draft gear.

Main technical parameters

Loading capacity : 40t

Tare weight :16t

Axle load : 14t

Cubic capacity :40.3m³

Commercial operation speed  : 80km/h

Track gauge : 1000mm
