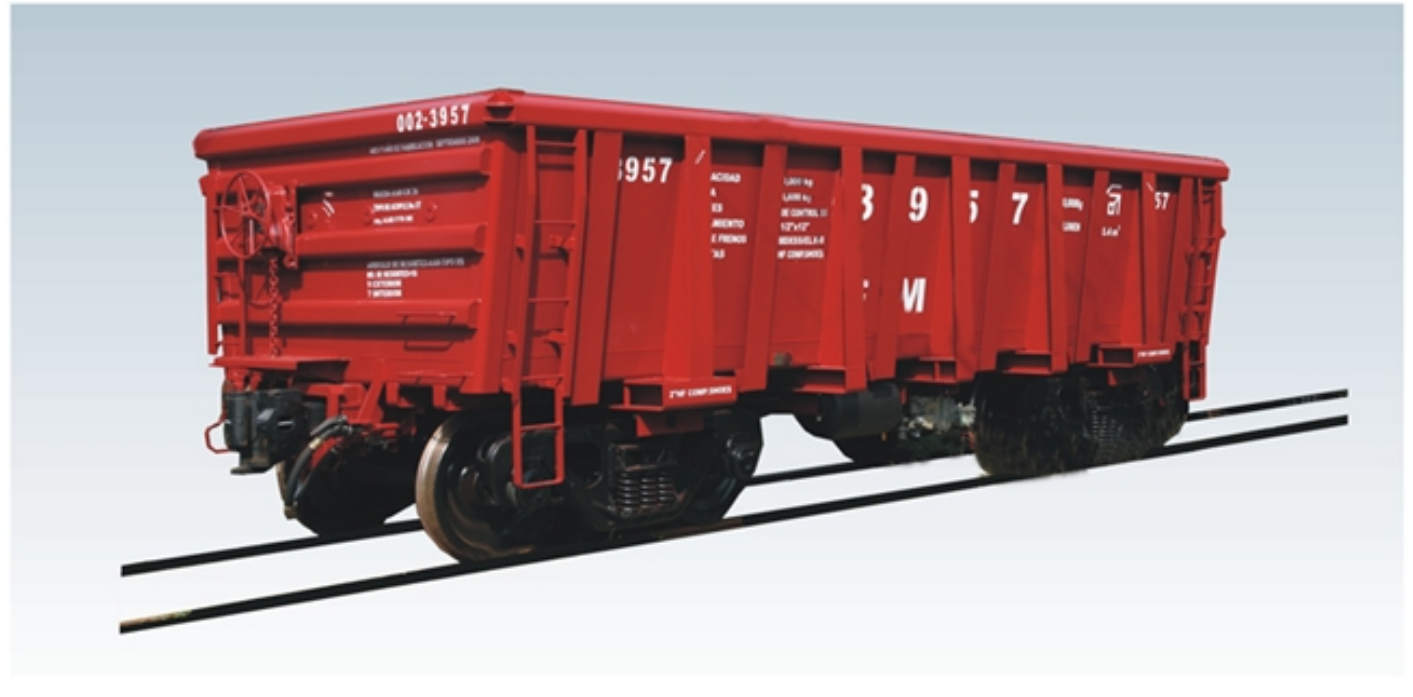

C90-VEN Ore gondola

Short Description:

This type of Gondola wagon is used for the transportation of iron ore in Venezuela. It is made of high strength anti -corrosive steel. There are eight water outlet distributed in the floor and four lifting lugs in the side wall which make the lifting of the wagon easier. It is unloaded by a tilter.

Main technical parameters

Loading capacity : 90t

Tare weight : 24.6t

Axle load :30t

Cubic capacity :38.4m³

Commercial operation speed : 80km/h

Track gauge : 1435mm
