Blind Oversized Rivet
Product Introduction
Blind oversized rivet adopts special structural design and makes use of deformation by extruding the collar to form a blind rivet head on the side of the rivet head and complete permanent connection with the other side of rivet. Compared with other single-sided connection technologies, blind oversized rivet has advantages of high connection strength, good reliability, superior vibration resistance, convenient installation, maintenance-free, excellent corrosion resistance, etc.
Product Advantage
① Operation from single side
② High connection strength
③ Superior vibration resistance
④ Good reliability
⑤ Convenient installation
⑥ Maintenance-free
Product Parameters

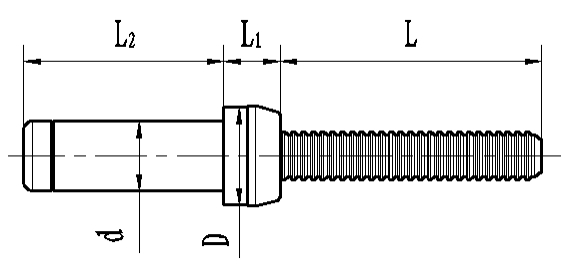

① Basic dimension
|
d |
D |
L |
L1 |
||||
|
Diameter/mm |
min |
max |
min |
max |
min |
max |
|
|
5 |
4.98 |
5.23 |
7.01 |
7.26 |
19.9 |
3.86 |
4.27 |
|
6 |
6.65 |
6.99 |
9.35 |
9.65 |
25.8 |
5.21 |
5.72 |
|
8 |
8.43 |
8.79 |
11.89 |
12.144 |
32.6 |
6.76 |
7.06 |
|
10 |
9.98 |
10.44 |
14.05 |
14.30 |
35.7 |
8.00 |
8.31 |
|
12 |
13.44 |
13.82 |
18.90 |
19.15 |
38.9 |
10.54 |
11.13 |
|
16 |
16.81 |
17.40 |
23.65 |
23.9 |
43.4 |
12.88 |
13.84 |
|
20 |
20.19 |
20.73 |
28.19 |
28.7 |
54.6 |
16.2 |
16.61 |
|
Note: L represents reference value |
|||||||
② Grip Range and Length
|
Grip range code |
|
|
|
|||||||||||||||||||
|
Grip range |
|
Grip range |
|
Grip range |
|
|||||||||||||||||
|
min |
max |
max |
min |
max |
max |
min |
max |
max |
||||||||||||||
|
3 |
2.4 |
4.0 |
14.7 |
2.4 |
4.0 |
17.7 |
— |
— |
— |
|||||||||||||
|
4 |
4.0 |
5.6 |
16.3 |
4.0 |
5.6 |
19.3 |
— |
— |
— |
|||||||||||||
|
6 |
5.6 |
7.1 |
17.9 |
5.6 |
7.1 |
20.8 |
4.8 |
7.9 |
24.1 |
|||||||||||||
|
8 |
7.1 |
8.7 |
19.5 |
7.1 |
8.7 |
22.5 |
— |
— |
— |
|||||||||||||
|
9 |
8.7 |
10.3 |
21.1 |
8.7 |
10.3 |
24.0 |
7.9 |
11.1 |
27.2 |
|||||||||||||
|
11 |
10.3 |
11.9 |
22.6 |
10.3 |
11.9 |
25.6 |
— |
— |
— |
|||||||||||||
|
12 |
11.9 |
13.5 |
24.2 |
11.9 |
13.5 |
27.2 |
11.1 |
14.3 |
30.4 |
|||||||||||||
|
14 |
13.5 |
15.1 |
25.8 |
13.5 |
15.1 |
28.8 |
— |
— |
— |
|||||||||||||
|
16 |
15.1 |
16.7 |
27.4 |
15.1 |
16.7 |
30.4 |
14.3 |
17.5 |
33.6 |
|||||||||||||
|
17 |
16.7 |
18.3 |
29.0 |
16.7 |
18.3 |
32.0 |
— |
— |
— |
|||||||||||||
|
19 |
18.3 |
19.8 |
30.6 |
18.3 |
19.8 |
33.6 |
17.5 |
20.6 |
36.8 |
|||||||||||||
|
22 |
— |
— |
— |
— |
— |
— |
20.6 |
23.8 |
39.8 |
|||||||||||||
|
25 |
— |
— |
— |
— |
— |
— |
23.8 |
27.0 |
43.1 |
|||||||||||||
|
Grip range code |
|
|
|
|
||||||||||||||||||
|
Grip range |
|
Grip range |
|
Grip range |
|
Grip range |
|
|||||||||||||||
|
min |
max |
max |
min |
max |
max |
min |
max |
max |
min |
max |
max |
|||||||||||
|
3 |
— |
— |
— |
— |
— |
— |
4.8 |
7.9 |
22.2 |
— |
— |
— |
||||||||||
|
6 |
4.8 |
7.9 |
26.7 |
6.4 |
9.5 |
35.9 |
6.4 |
12.7 |
42.6 |
6.4 |
12.7 |
44.5 |
||||||||||
|
9 |
7.9 |
11.1 |
29.8 |
9.5 |
12.7 |
39.1 |
— |
— |
— |
— |
— |
— |
||||||||||
|
12 |
11.1 |
14.3 |
33 |
12.7 |
15.9 |
42.3 |
12.7 |
19.1 |
49.0 |
12.7 |
19.1 |
50.8 |
||||||||||
|
16 |
14.3 |
17.5 |
36.2 |
15.9 |
19.1 |
45.4 |
— |
— |
— |
— |
— |
— |
||||||||||
|
19 |
17.5 |
20.6 |
39.4 |
19.1 |
22.2 |
48.6 |
19.1 |
25.4 |
55.3 |
19.1 |
25.4 |
57.24 |
||||||||||
|
22 |
20.6 |
23.8 |
42.5 |
22.2 |
25.4 |
51.8 |
— |
— |
— |
— |
— |
— |
||||||||||
|
25 |
23.8 |
27.0 |
45.7 |
25.4 |
28.6 |
55.0 |
25.4 |
31.8 |
61.4 |
25.4 |
31.8 |
63.5 |
||||||||||
|
28 |
27.0 |
30.2 |
48.9 |
28.6 |
31.8 |
58.1 |
— |
— |
— |
— |
— |
— |
||||||||||
|
31 |
30.2 |
33.3 |
52.1 |
31.8 |
35 |
61.3 |
31.8 |
38.1 |
68.0 |
— |
— |
— |
||||||||||
③ Mechanical properties
|
Diameter/mm |
Shear force/kN |
Tensile force/kN |
|
5 |
≥12.5 |
≥8.0 |
|
6 |
≥22.7 |
≥14.5 |
|
8 |
≥35.8 |
≥23.1 |
|
10 |
≥49.4 |
≥32.3 |
|
12 |
≥89.7 |
≥57.9 |
|
16 |
≥126.8 |
≥91.2 |
|
20 |
≥200.7 |
≥129.5 |
